In the precision manufacturing world, Vertical Machining Centers (VMCs) are at the heart of modern production lines. These machines offer unmatched versatility, speed, and accuracy in metalworking tasks such as milling, drilling, tapping, and boring. But what gives a VMC its power and precision? The answer lies in its core structure — the VMC body.

In this article, we’ll explore the key components and functions of a vertical machining center body, with insights from Suzhou Zhiquan Electromechanical Equipment Co., Ltd., a trusted manufacturer and supplier of CNC machining centers, wire-cut EDMs, EDM sinkers, and milling machines.

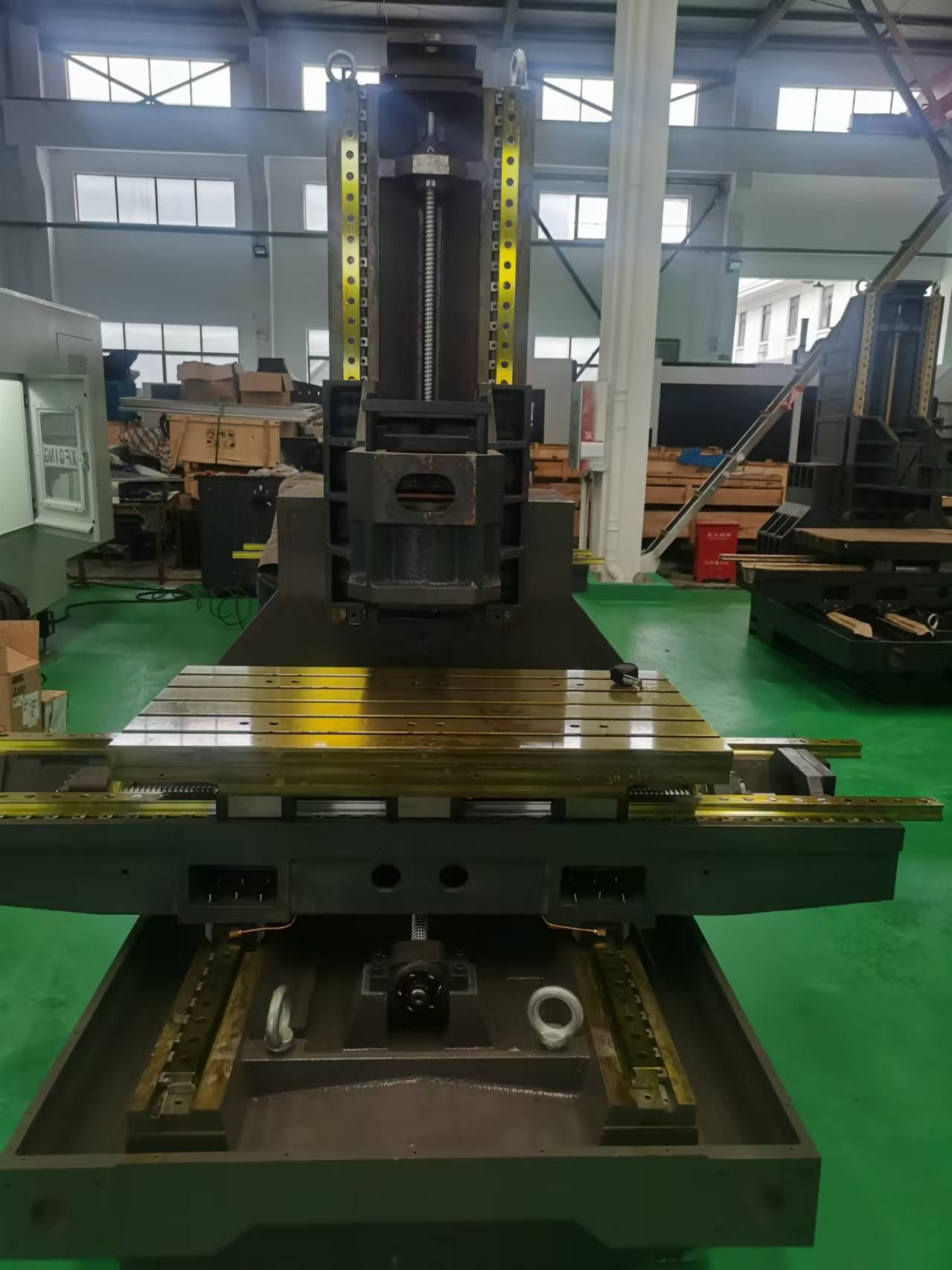

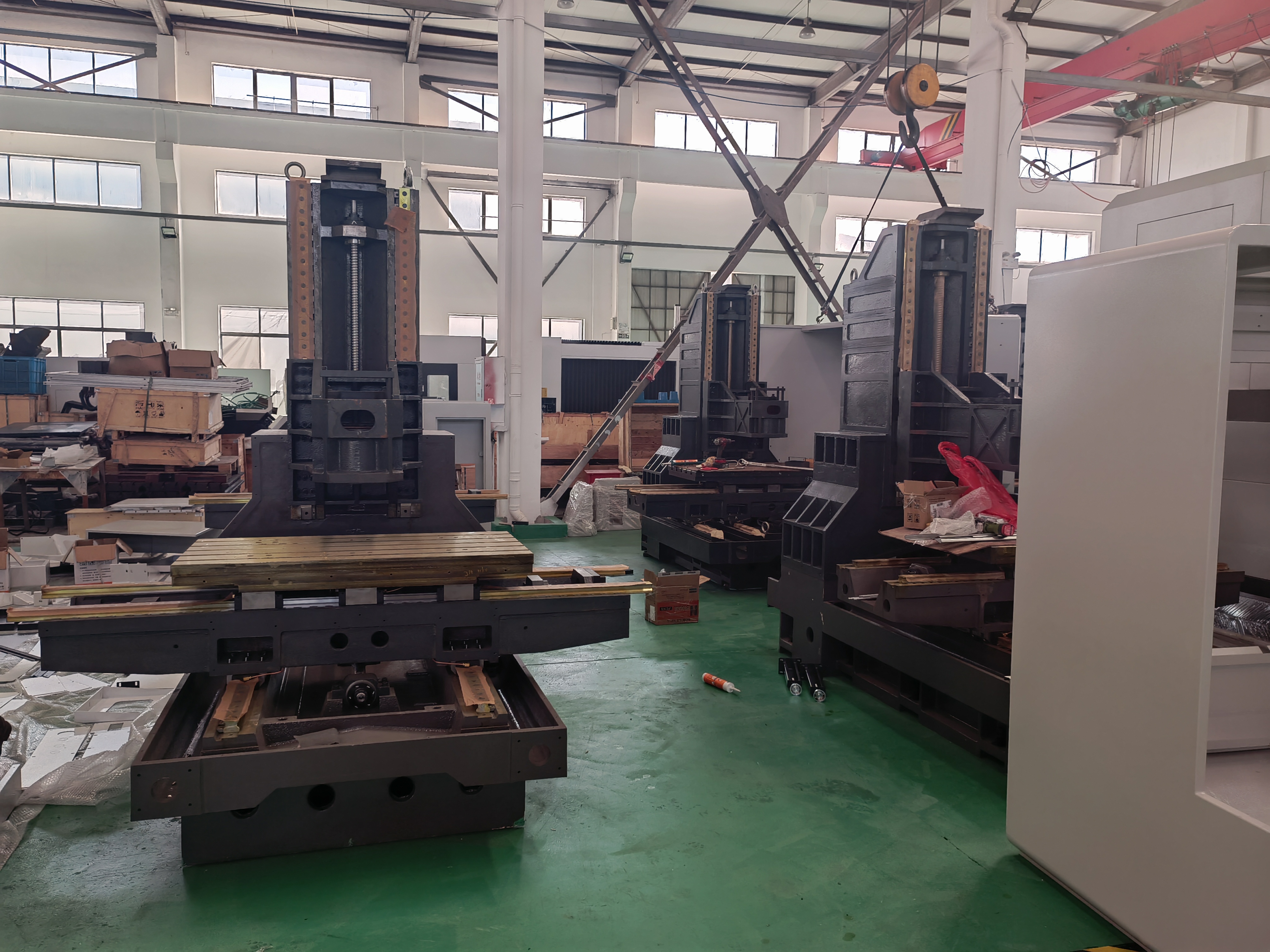

What Is a Vertical Machining Center (VMC) Body?

The VMC body refers to the main structural frame and foundational elements that support the machine’s mechanical and electronic systems. It provides the rigid, vibration-dampening, and precisely aligned platform necessary for high-accuracy machining operations.

Whether it's producing aerospace components, automotive parts, molds, or medical instruments, a stable and precisely built VMC body ensures optimal cutting performance and long-term reliability.

Key Components of a VMC Body and Their Functions

Let’s break down the essential elements of the VMC body:

1. Base

Function: The base is the foundational component of the VMC. It supports the entire weight of the machine, including the table, column, and moving parts. It is typically made of high-grade cast iron for superior vibration damping and structural rigidity.

Zhiquan Insight: Suzhou Zhiquan machines feature thickened, precision-ground bases to enhance stability during high-speed, high-torque cutting.

2. Column

Function: Mounted vertically on the base, the column houses the spindle head and supports the Z-axis movement. It must be rigid and precisely aligned to prevent spindle deflection and ensure accurate vertical motion.

Zhiquan Highlight: Their VMCs feature internally ribbed, thermally balanced columns to maintain structural integrity even during extended production runs.

3. Saddle and Table

Function:

The saddle supports the machine table and moves along the Y-axis.

The table is where the workpiece is mounted, often with T-slots or a fixture system. It moves along the X-axis.

Precision movement of the table and saddle is vital for multi-axis machining accuracy.

Zhiquan Advantage: Zhiquan uses precision linear guideways or box ways (depending on model) for smooth movement and high load capacity.

4. Spindle Head

Function: The spindle head houses the cutting spindle, which rotates the tool. It moves up and down on the column along the Z-axis. It must deliver both high rotational speed and torque while maintaining minimal runout.

Zhiquan Feature: Their spindle assemblies are dynamically balanced and available in belt-driven or direct-drive models for various cutting demands.

5. Tool Changer (ATC) Mounts

Function: The automatic tool changer (ATC) is usually mounted on the column or frame. It allows for automatic switching between different tools without manual intervention, speeding up the machining cycle.

Zhiquan System: Offers 16 to 24-position ATCs with servo or pneumatic actuators for rapid, reliable tool changes.

6. Enclosure and Chip Management System

Function: The protective enclosure prevents debris, coolant, and noise from escaping. Integrated chip conveyors and coolant systems are mounted to the base or side of the machine body for efficient waste removal and cooling.

Zhiquan Engineering: Equips its machines with fully enclosed splash guards, filtered coolant tanks, and auger or chain-type chip conveyors.

7. Electrical Cabinet and CNC Controller Mount

Function: These are physically attached to or integrated into the body for space-saving and operational efficiency. The CNC controller is the interface through which operators input programs and monitor operations.

Zhiquan Integration: Zhiquan machines are compatible with FANUC, Siemens, Mitsubishi, or domestic CNC systems, offering flexible automation solutions.

The Importance of a Well-Built VMC Body

A precision-machined, thermally stable, and vibration-resistant body leads to:

Higher machining accuracy

Longer tool life

Reduced wear and maintenance

Faster cycle times

Improved surface finishes

Whether you're machining complex 3D molds or large aluminum parts, the integrity of the VMC body directly affects quality, efficiency, and cost-effectiveness.

Suzhou Zhiquan Electromechanical Equipment Co., Ltd.: Your Partner in Precision

With years of experience in the machine tool industry, Suzhou Zhiquan Electromechanical Equipment Co., Ltd. is a trusted name in CNC machining center design, manufacturing, and sales. Their product lineup includes:

Vertical Machining Centers (VMCs)

CNC Wire Cut EDM Machines

EDM Sinker Machines

Manual and CNC Milling Machines

Zhiquan’s commitment to quality engineering, after-sales support, and customization has made them a reliable partner for clients in automotive, aerospace, mold-making, electronics, and general manufacturing sectors.

Final Thoughts

The body of a Vertical Machining Center is much more than a frame — it is the core structural element that defines the machine’s precision, performance, and durability. Understanding its components and functions helps users optimize operations, reduce errors, and ensure better long-term returns.

Whether you're upgrading an existing production line or setting up a new machining center, Suzhou Zhiquan offers the reliability, engineering excellence, and technical support needed to succeed in today’s demanding manufacturing environment.
